Mitsubishi EVO IV – VIII MaxxECU RACE

Tooteinfo

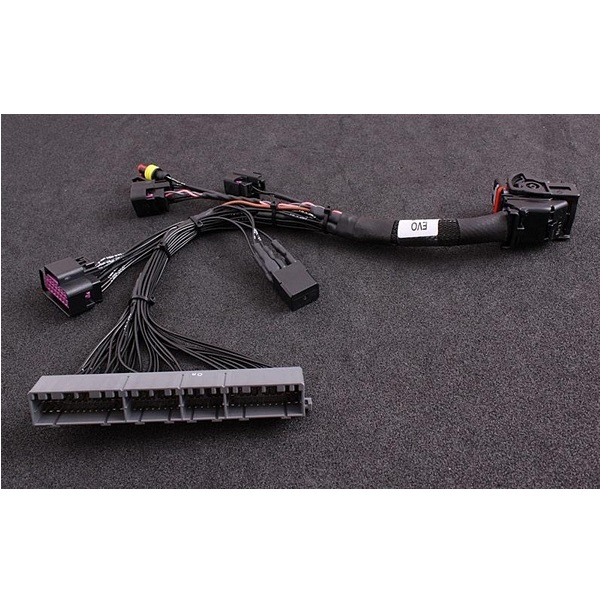

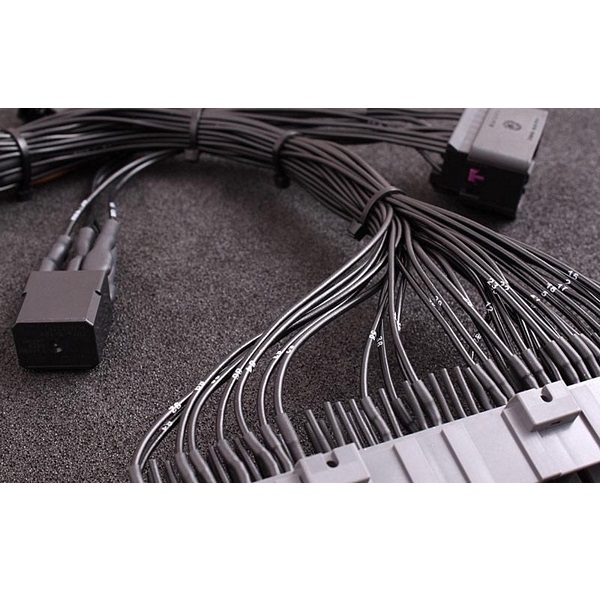

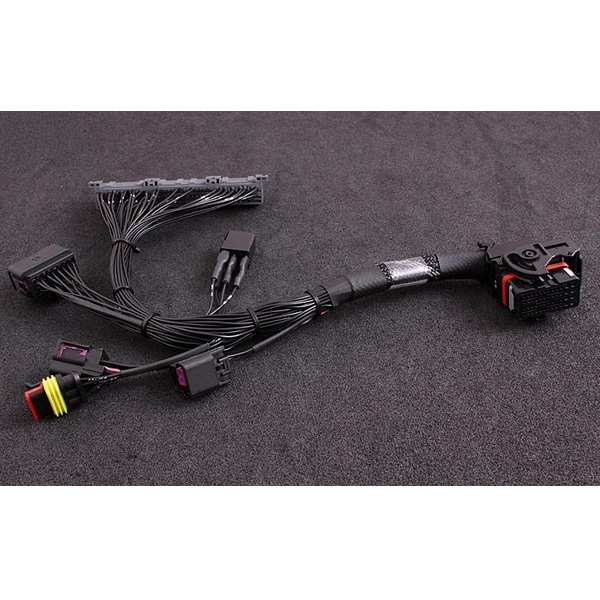

Mitsubishi EVO IV – VIII MaxxECU RACE Plugin EXTRA

MaxxECU RACE is flexible,reliable and fast. MaxxECU will give you full engine control!

• 8 built-in exhaust temperature (type-k) amplifiers (requires secondary cable harness)
• Built-in 400kPa(3bar boost) MAP-sensor
• Fast and reliable USB PC-communication
• Android MDash app wireless BT-communication as dash
• Stock MAF-sensor can be removed (if exist) and replaced with MaxxECU internal MAP sensor
• Control orginal idle solenoid, AC, tachometer and other original equipment*
• Fuel injectors can be replaced with optional high or low ohm
• Stock lambdasensor(s) must be removed and replaced with included LSU 4.2 wideband oxygen sensor
• No change in the vehicle’s original system needs to be done*

* See technical documentation.

The EGR valve is not controlled.
Stock EVAP can be removed and freeing up GPO 7 for extra in/out on MaxxECU. For using the car’s standard ODB-2 port an external wiring to ODB-2 port is needed.

• MaxxECU RACE
• Technical plugin documentation
